Behavior Trees in Robotics: The Complete Practical Guide

Nico Nuss 0
Autonomous warehouse robot guided by a visualized behavior tree decision hierarchy [Image content created with AI]

A mobile robot is asked to carry a tote across a warehouse. The assignment sounds simple until reality intervenes: a person blocks the aisle, the map changes, localization confidence falls, the path planner times out and the battery approaches its reserve threshold. The robot must decide what matters now, interrupt an action that is no longer sensible, recover without entering an endless loop and explain what happened afterward.

This is the problem behavior trees solve. A behavior tree, usually abbreviated to BT, is a hierarchical control structure that organizes a robot’s decisions as small, reusable behaviors. On every update, the tree evaluates the current situation and returns one of three core states: Success, Failure or Running. That compact contract makes it possible to combine perception, planning, motion, recovery and mission logic without hiding the entire robot inside one monolithic state machine. It belongs to the wider field of robotics software and control technology, where high-level decisions must ultimately connect to reliable physical action.

Behavior trees are not merely a visual programming style. Used well, they create a practical boundary between high-level decision logic and lower-level robot capabilities. Used poorly, they become an unreadable maze of conditions, retries and shared variables. This guide explains both sides: how BTs work, why they are useful, where they fail and how to engineer them for production robots.

Behavior trees in 60 seconds

If you need the short answer, remember these principles:

  • A behavior tree is evaluated from its root through repeated ticks.
  • Every ticked node reports Success, Failure or Running.
  • Sequence nodes express “do these steps in order.”
  • Fallback or Selector nodes express “try these alternatives in priority order.”
  • Action nodes do work; Condition nodes inspect the world or internal state.
  • Reactive trees reconsider relevant conditions on later ticks, so priorities can change while the robot is operating.
  • Stateful or memory variants resume from a running child instead of reevaluating earlier children.
  • A blackboard or typed ports pass data such as goals, paths and error codes between nodes.
  • Long-running actions must be non-blocking and safely cancellable.
  • A BT coordinates robot capabilities; it does not replace motor control, perception, path planning or an independent safety system.

The academic foundation describes a BT as a directed, rooted tree in which control-flow nodes combine leaf nodes that sense or act. The root periodically sends a tick down the tree, and execution follows the semantics of the nodes it reaches. Colledanchise and Ögren’s open-access book provides a rigorous treatment of modularity, reactivity, robustness and formal analysis, while the implementation literature connects those ideas to practical robot software. See Behavior Trees in Robotics and AI and the peer-reviewed implementation overview, BehaviorTree.CPP: a Behavior Tree Library in C++.

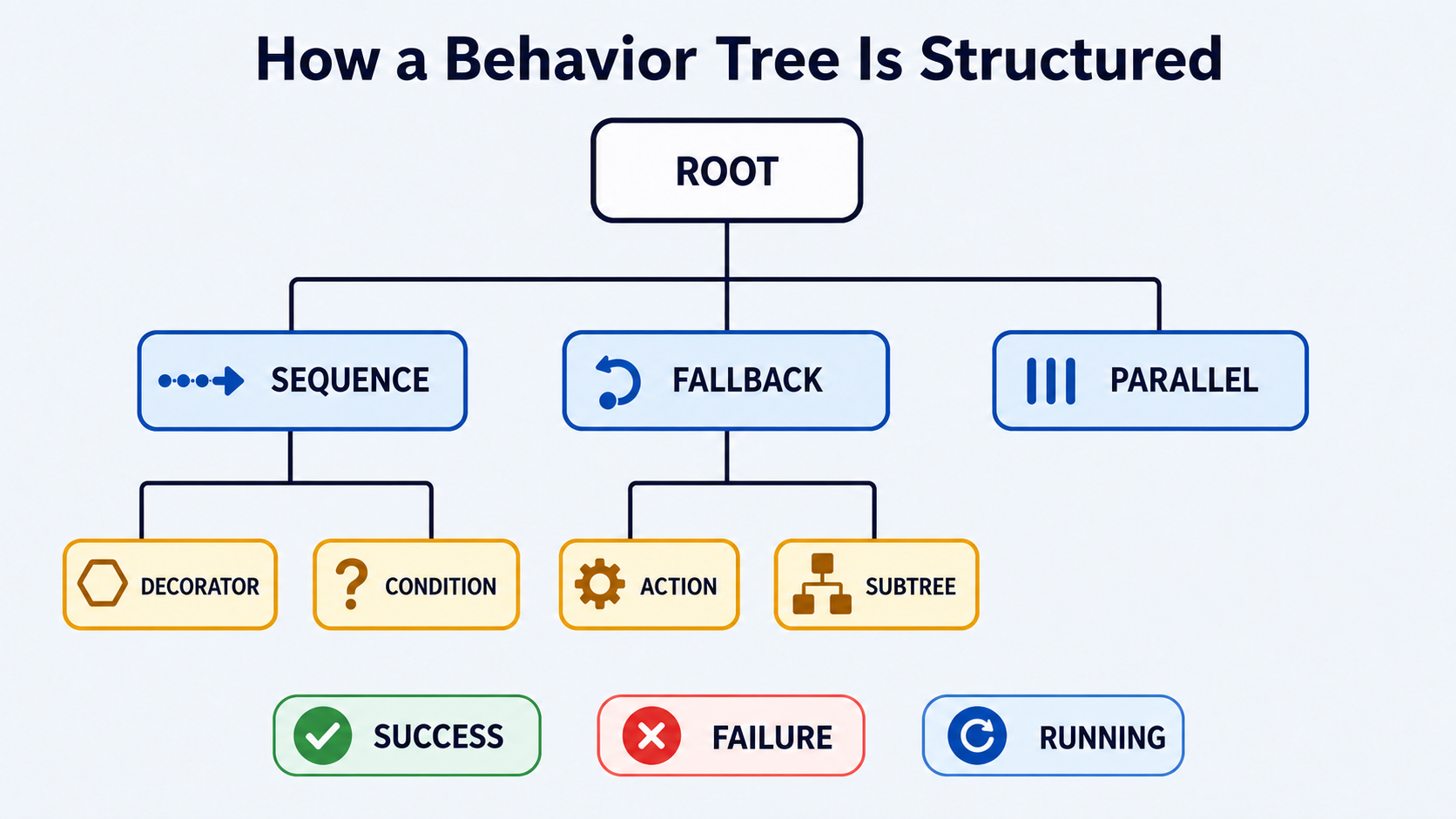

Diagram showing root, control nodes, execution nodes and return statuses in a robotics behavior tree [Image content created with AI]
The anatomy of a behavior tree: control nodes define traversal, while conditions and actions connect the decision hierarchy to the robot. Every tick ultimately returns Success, Failure or Running.

Why robot behavior becomes difficult so quickly

Robotic systems are rarely a single algorithm. A field robot may include localization, object detection, task planning, trajectory generation, motion control, collision monitoring, battery management, human interaction and remote supervision. Each subsystem has its own timing, failure modes and recovery mechanisms.

The hard part is orchestration. Consider a service robot that must deliver an item:

  1. Confirm that the item is secured.
  2. Check whether the destination is valid.
  3. Plan and execute a route.
  4. Slow down or yield when a person enters a shared area.
  5. Replan when an aisle is blocked.
  6. Ask for help if recovery attempts fail.
  7. Suspend the mission and charge when the battery becomes critical.
  8. Resume only when the mission is still valid.

A simple sequence handles the happy path. Production behavior must also express priorities, interruptions, fallbacks, timeouts, retries and escalation. If every exception becomes another global transition, a conventional finite-state machine can become hard to review. Behavior trees address that coordination problem by putting decision logic into a hierarchy with local execution rules.

The execution model: ticks and return statuses

A behavior tree does not normally execute from top to bottom once and then disappear. An executor sends a tick to the root at a chosen frequency. The root ticks one or more children according to its type. Each visited child returns a status.

Status Meaning in practice Typical example
Success The node’s goal has been achieved or its condition is true. A valid path has been computed.
Failure The node cannot achieve its goal under the current conditions, or its condition is false. No feasible path was found.
Running The work has started but is not finished. The base is still following a path.

Some frameworks add states such as Idle, Skipped or an explicit error state. Those additions are useful implementation details, but Success, Failure and Running are the portable mental model.

The distinction between Failure and a software fault is crucial. “The requested object is not visible” may be an expected Failure that activates a search behavior. “The camera driver crashed” is an operational fault that should be logged, surfaced and possibly escalate the mission. Treating every problem as the same generic Failure makes diagnosis and safe recovery much harder.

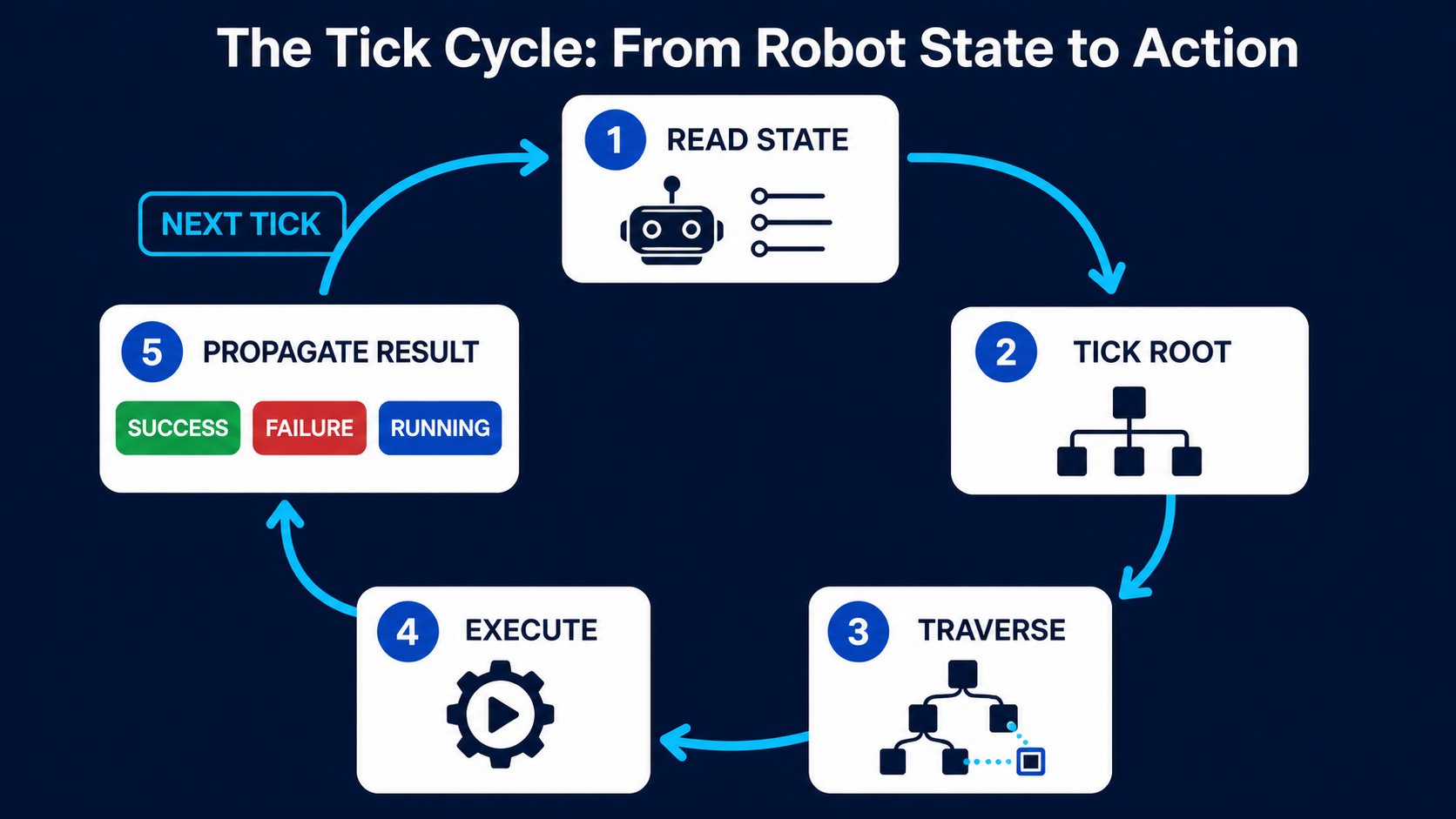

Five-step diagram of a behavior tree tick cycle from reading robot state to propagating Success, Failure or Running [Image content created with AI]
The behavior-tree control loop: fresh robot state is read on every update, the tree is traversed, a leaf executes and its status propagates back to the root before the next tick. [Image content created with AI]

A tick-by-tick example

Imagine a sequence containing CheckDoorOpen followed by DriveThroughDoor.

  • Tick 1: CheckDoorOpen returns Success. DriveThroughDoor starts and returns Running. The sequence returns Running.
  • Tick 2: the sequence is ticked again. Depending on the sequence type, it either rechecks the door or resumes at DriveThroughDoor.
  • Tick 3: a person steps into the doorway. A reactive sequence rechecks the safety condition, sees that passage is no longer clear and stops ticking the drive action.
  • The executor must then halt or cancel DriveThroughDoor safely. Merely ceasing to call a long-running action is not a complete cancellation strategy.

That final point separates a diagram that looks correct from a robot that behaves correctly.

The six node families you need to understand

Terminology varies slightly between libraries, but most behavior trees are assembled from four control-flow node types and two execution node types.

1. Sequence: all required steps

A Sequence ticks its children from left to right. It returns Failure when a child fails, Running when a child is still running and Success only when every child succeeds.

Use it to express an ordered dependency:

Validate goal → compute path → follow path → confirm arrival

A Sequence resembles a logical AND with execution order. It should not be read as “run everything regardless of the outcome.” Once a child returns Failure or Running, later children are not ticked during that traversal.

2. Fallback or Selector: prioritized alternatives

A Fallback ticks children from left to right until one returns Success or Running. It fails only when every child fails.

Use it to express policy:

Use the preferred grasp → try an alternative grasp → request human help

The ordering matters. The first viable branch wins, so place the safest or most desirable option first. A Fallback is sometimes called a Selector or Priority node.

3. Parallel: coordinated concurrency

A Parallel node ticks multiple children and decides its result using a success and failure policy. This can represent concurrent monitoring and action, but the word “parallel” can be misleading: children may be ticked sequentially within one executor thread even though their underlying operations proceed asynchronously.

Parallel branches need explicit resource ownership. Two children that both command the mobile base are not meaningfully independent. Without arbitration, cancellation rules and deterministic thresholds, a Parallel node creates race conditions disguised as a tidy diagram.

4. Decorator: change one child’s semantics

A Decorator wraps a child and modifies its behavior or result. Common examples include:

  • invert Success and Failure;
  • retry up to a defined count;
  • impose a timeout;
  • limit execution frequency;
  • force a returned status;
  • repeat until a condition is met.

Decorators are powerful because they separate cross-cutting policies from actions. They are also easy to abuse. A deeply nested stack of retry, timeout, inversion and status-forcing decorators can make the actual behavior impossible to infer during a review.

5. Action: perform work

Actions connect the tree to robot capabilities. An action might calculate a route, move an arm, speak a prompt, open a gripper or call a ROS 2 action server. Short actions may complete in one tick. Long-running actions should start work, return Running and remain responsive to cancellation.

A good action node has a narrow contract: typed inputs, observable outputs, documented failure reasons and predictable halt semantics. It should not silently implement an entire second decision system.

6. Condition: ask a question

Conditions read current information and normally return Success or Failure immediately. Examples include BatteryIsSufficient, GoalIsValid, PersonInSafetyZone and LocalizationIsReliable.

Conditions should be fast and side-effect free. If a condition launches a network request, changes a device setting or blocks for a sensor result, the tree becomes difficult to reason about. Expensive perception should usually run in a separate component that continuously updates a well-defined state; the BT condition reads that state.

Reactive nodes versus memory nodes

One of the most important BT design decisions is whether a composite node remembers where it was.

A reactive sequence reevaluates earlier children on later ticks. This is useful when earlier conditions are guards that must remain true. For example:

Localization reliable? → route valid? → follow route

If localization confidence drops while the robot is moving, the reactive sequence can withdraw the tick from FollowRoute and move control to recovery logic.

A memory sequence or stateful sequence resumes from its previously Running child. That avoids needlessly rechecking expensive or one-time prerequisites. It is appropriate when earlier steps represent completed work rather than continuously valid conditions.

Neither option is universally better. Reactivity improves responsiveness, but frequent reevaluation can waste computation or restart work. Memory improves efficiency and continuity, but stale assumptions can persist. The semantic question is simple: must this condition still be true while the action is running? If yes, reevaluate it—or monitor it through an independent safety or supervision mechanism.

A practical robot behavior tree

The following simplified tree coordinates a warehouse delivery mission:

Mission
└── Fallback
    ├── Sequence: Handle critical battery
    │   ├── BatteryBelowReserve?
    │   └── DockAndCharge
    └── Sequence: Deliver tote
        ├── ToteSecured?
        ├── GoalValid?
        ├── Fallback: Navigate with recovery
        │   ├── NavigateToGoal
        │   └── Sequence
        │       ├── ClearLocalObstacle
        │       └── NavigateToGoal
        └── ConfirmDelivery

The first branch has priority. When the battery is not below reserve, BatteryBelowReserve? fails and the Fallback tries the delivery branch. When the battery becomes critical, the charge branch can become eligible on a later tick.

This example is intentionally small. In a production design, NavigateToGoal would probably be a subtree containing planning, control and bounded recovery. Battery handling would distinguish “low,” “critical” and “unable to reach dock.” Safety-rated stopping would remain outside the BT’s sole authority.

Equivalent XML-style structure

BehaviorTree.CPP commonly describes tree topology in XML while implementing leaf nodes in C++. A compact example might look like this:

<root BTCPP_format="4">
  <BehaviorTree ID="WarehouseMission">
    <Fallback name="MissionPolicy">
      <Sequence name="RechargeWhenCritical">
        <BatteryBelow threshold="0.15"/>
        <DockAndCharge dock_id="{preferred_dock}"/>
      </Sequence>
      <Sequence name="DeliverTote">
        <ToteSecured/>
        <ComputeRoute goal="{delivery_goal}" path="{planned_path}"/>
        <FollowRoute path="{planned_path}"/>
        <ConfirmDelivery order_id="{order_id}"/>
      </Sequence>
    </Fallback>
  </BehaviorTree>
</root>

The exact node names and ports depend on the application. The architectural point is more important: the XML defines composition, while tested robot capabilities remain implementation components. The official BehaviorTree.CPP documentation describes runtime-loaded XML, asynchronous actions, type-safe data flow, logging and ROS 2 integration.

Data flow: blackboards, ports and scope

Control flow answers which node should run. Data flow answers what that node operates on.

Behavior-tree frameworks often use a shared blackboard plus input and output ports. A planner receives a goal through an input port and writes a path to an output port. A controller reads that path. A recovery node may read a planner error code and choose an appropriate response.

This is convenient, but an unrestricted blackboard becomes global mutable state. If any node can read or overwrite any key, dependencies become invisible and integration bugs appear far from their cause.

Treat blackboard entries as an API:

  • Use descriptive, stable names rather than temp, data or result.
  • Give every value a documented type, owner and lifetime.
  • Prefer explicit node ports over hidden lookups.
  • Scope data to subtrees where the framework allows it.
  • Separate mission inputs, live world state and diagnostic outputs.
  • Never use the blackboard as a substitute for a properly modeled world state.
  • Record important value changes in the execution trace.

Type-safe ports catch integration mistakes before a robot moves. They also make subtrees reusable because their dependencies are visible at the boundary.

Asynchronous actions and safe cancellation

Most valuable robot actions take longer than one tick. Navigation may take minutes; grasp planning may take seconds; an operator response may never arrive. Blocking the tree executor until an action finishes prevents the rest of the policy from reacting.

A production action node should therefore behave like a small asynchronous state machine:

  1. On its first tick, validate inputs and start the external operation.
  2. While the operation is active, return Running without blocking the executor.
  3. Poll or receive completion information efficiently.
  4. Return Success with outputs when the goal is achieved.
  5. Return a meaningful Failure when the operation cannot continue.
  6. When halted, propagate cancellation to the underlying motion, service or task.
  7. Confirm that resources have reached a known state before allowing a conflicting action to start.

This lifecycle is a common source of real-world faults. A navigation node can stop receiving ticks while its ROS action server continues driving. A manipulator command can be cancelled in software while the controller still holds the previous target. A good BT library provides lifecycle hooks; the application still has to implement them correctly.

The current BehaviorTree.CPP project treats non-blocking asynchronous actions as a first-class feature and supports plugins, runtime XML, typed data flow and execution logging. Those features are useful only when leaf-node contracts are designed with equal care.

Behavior trees with ROS 2 and Nav2

ROS 2 is a natural match for BT orchestration because long-running capabilities can be exposed through actions, short operations through services and current state through topics or shared components. A BT node then becomes an adapter between tree semantics and a ROS interface.

The Navigation2 project, commonly called Nav2, uses behavior trees to orchestrate modular navigation servers. Planners, controllers and recovery behaviors remain separate components, while a navigation tree determines when to compute a path, follow it, replan or invoke recovery. The official Nav2 documentation emphasizes that multiple trees can represent different navigation tasks rather than forcing every robot into one policy.

Typical Nav2-related leaves include path computation, path following, waiting, spinning, backing up and clearing costmaps. The official Nav2 behavior-tree node overview also makes a useful distinction between a BT node and a ROS node: they are different concepts even when one wraps the other.

A robust navigation pattern

A practical navigation tree usually needs more than ComputePath → FollowPath. Consider four layers:

  1. Goal validation: Is the goal current, reachable in principle and permitted?
  2. Planning: Can the global planner produce a route?
  3. Control: Can the local controller track it under current conditions?
  4. Recovery and escalation: Is the failure local, global, transient or terminal?

Local recovery should sit close to the capability it repairs. If path following fails because of a temporary obstacle, clearing local navigation state or waiting briefly may be reasonable. If planning fails repeatedly, a broader strategy might refresh the global costmap, request a new goal or ask an operator. A single global “recovery” branch rarely has enough context to respond intelligently.

Retries must be bounded. “Try again forever” is not resilience; it is an unreported deadlock. Record attempt counts, elapsed time and the final cause of escalation.

Behavior trees versus finite-state machines, statecharts and planners

Behavior trees do not make every other control architecture obsolete. The right choice depends on the shape of the problem. In practice, the tree often consumes state estimates built through sensor fusion while delegating trajectory execution to dedicated planners and controllers.

Approach Strongest fit Main advantage Common limitation
Behavior tree Reactive task orchestration with reusable skills and recovery Hierarchical, readable priority and fallback logic Large trees still require architectural discipline
Finite-state machine (FSM) Small systems with a limited, explicit lifecycle Precise and familiar state-transition model Cross-cutting transitions can multiply as complexity grows
Hierarchical statechart Event-driven modes with history, concurrency and explicit transitions Rich semantics for system modes Tooling and semantics can be heavier than needed for task policy
Task planner Selecting or ordering actions from goals and a world model Can generate plans rather than hard-code every sequence Execution monitoring and real-time recovery still need an executive layer
Rule engine Independent business or policy rules Easy to add declarative rules Conflicts and execution order can become opaque

BTs and FSMs are theoretically capable of representing many of the same behaviors. The practical difference is where complexity lives. An FSM makes states and transitions explicit. A BT makes hierarchical priorities and local outcomes explicit. An FSM may be clearer for a device lifecycle such as Off → Booting → Ready → Fault. A BT may be clearer for “attempt the mission, recover locally, then escalate.”

Hybrid architectures are normal. A robot can use a state machine for safety and operating modes, a planner for long-horizon task selection and a behavior tree for execution. Low-level controllers remain responsible for stable motion. The decision should follow the problem, not a fashion.

How to design a maintainable behavior tree

Start with outcomes, not node types

Write the robot’s mission, priorities and failure policy in plain language. Identify what must remain true, what can be retried and what requires escalation. Only then map the logic to Sequences, Fallbacks and leaves.

Build a vocabulary of domain behaviors

Tree diagrams should read like the system domain: AcquirePart, VerifyGrip, NavigateToStation, RequestAssistance. Avoid exposing low-level implementation fragments such as SetFlag3 or CallServiceB unless those details are genuinely meaningful to policy reviewers.

Keep leaf nodes cohesive

An action should do one capability-sized job, not one CPU instruction and not an entire mission. If a leaf contains multiple hidden retries, alternative strategies and stateful branches, important policy is no longer visible in the tree.

Use subtrees as modules

Package stable patterns such as NavigateWithRecovery, SafePick and HumanHandover behind explicit ports. A subtree should have a documented purpose, inputs, outputs, preconditions, postconditions, cancellation behavior and failure taxonomy.

Make reactivity deliberate

Do not use reactive composites simply because they sound safer. Identify which guards need continuous reevaluation and the maximum acceptable response time. Ensure that preempted actions can actually stop.

Put limits on every recovery loop

Define maximum attempts, maximum duration and an escalation outcome. Vary the response when evidence changes; repeating the same failed command with no new information rarely helps.

Design observability before deployment

Every tick trace should answer:

  • Which path through the tree was selected?
  • Which node was Running?
  • What input values affected the choice?
  • Why did a leaf fail?
  • Was it halted, cancelled or timed out?
  • Which recovery was attempted and how often?

BehaviorTree.CPP supports logging and visualization, while Groot2 provides tree editing, live monitoring, blackboard inspection, log replay, breakpoints and fault injection. These capabilities shorten diagnosis only if names, ports and error information are meaningful.

Common behavior-tree anti-patterns

The giant tree

One XML file grows until no engineer can understand it without scrolling across hundreds of nodes. Split it by stable responsibilities and use explicit subtree interfaces. Modularity is not achieved merely by drawing boxes inside other boxes.

The blackboard junk drawer

Nodes communicate through undocumented keys, implicit types and stale values. Establish ownership, scope, schemas and update rules. Validate required data when a subtree starts.

Side-effect conditions

A node named DoorIsOpen also sends a command to open the door. Reviewers can no longer tell whether a condition is an observation or an action. Keep predicates observational.

Infinite retry

A retry decorator masks a persistent failure and prevents escalation. Bound retries and include backoff or a meaningful change of strategy.

Blocking actions

A leaf waits synchronously for navigation or an external service, freezing the executor. Use asynchronous interfaces and return Running.

Fake preemption

The tree switches branch, but the old actuator command remains active. Define and test halt behavior through the entire stack, not only at the BT node boundary.

Parallel resource conflict

Two branches command the same base, arm or gripper. Assign exclusive resource ownership or introduce an arbiter with explicit policy.

Using decorators to hide unclear semantics

Several nested inverters and forced-status decorators may produce the desired truth table, but they impose a heavy cognitive cost. Prefer a clearly named condition or subtree when it better communicates intent.

Treating Success as truth forever

A completed check may become invalid seconds later. Decide whether a result is a historical milestone or a live invariant and choose memory or reactive semantics accordingly.

Testing behavior trees systematically

A tree that looks correct in an editor can fail under timing, cancellation and sensor uncertainty. Test at several levels.

1. Leaf-node contract tests

For every condition and action, verify inputs, outputs, status transitions, timeout behavior and error mapping. For asynchronous actions, test cancellation before start, during execution and just before completion.

2. Subtree tests

Replace hardware and services with deterministic fakes. Test the happy path, every expected failure branch, retry exhaustion, stale blackboard data and preemption by a higher-priority branch.

3. Tick-trace tests

Given a sequence of world-state updates, assert the sequence of ticked nodes and status transitions. This catches subtle changes when a Sequence is replaced by a reactive or memory variant.

4. Simulation scenarios

Introduce blocked routes, disappearing objects, delayed services, localization loss and low battery. Vary the timing: many bugs occur only when completion and cancellation happen in the same update window.

5. Fault injection

Force leaves to fail, run indefinitely or return malformed outputs. Tools such as Groot2 can help during interactive testing, but automated scenarios should remain part of continuous integration.

6. Hardware-in-the-loop and field tests

Validate cancellation latency, actuator state after halt, network loss and startup order on representative hardware. Simulation rarely reproduces every controller, bus or sensor timing effect.

Useful metrics include mission success rate, recovery success rate, retries per mission, time spent Running in each leaf, cancellation latency, operator interventions and the number of terminal failures without a classified cause.

Performance and timing

Tick frequency should be derived from behavior requirements, not chosen arbitrarily. A mission planner may need only a few updates per second; a collision response must not depend on a slow high-level tree. Safety-critical reactions belong in dedicated systems with known timing guarantees.

At each frequency, ask:

  • How quickly must this policy notice a changed condition?
  • How expensive are the conditions along the active path?
  • Does any leaf block the executor?
  • Can several asynchronous callbacks mutate shared state while the tree is ticking?
  • Are blackboard reads consistent within a tick?
  • What happens when execution exceeds the tick period?

Repeatedly evaluating perception inside conditions can dominate runtime. Prefer cached, timestamped results produced by the perception subsystem. Reject stale observations explicitly rather than assuming the latest value is current.

Concurrency also requires care. A tree may be conceptually reactive while its implementation is vulnerable to races between callbacks, cancellation and blackboard updates. Define an execution model—single-threaded event loop, mutually exclusive callbacks or synchronized shared state—and test it under load.

Safety, verification and human oversight

A behavior tree can make safety-related policy readable, but readability does not make it safety-rated. Emergency stops, protective stops, speed and separation monitoring, joint limits and other risk controls should be implemented according to the relevant system safety architecture and standards. A general-purpose BT executor should not be the sole barrier preventing harm.

Use the tree to coordinate responses such as stopping a mission, moving to a safe pose, notifying an operator or entering a restricted mode. Use independent watchdogs and safety controllers to enforce hard limits. If a lost tick, software deadlock or corrupted blackboard can defeat a required protective function, the architecture has placed too much trust in the executive layer.

Formal analysis can still add value. The research literature examines conditions for safety, robustness and efficiency and explores transformations between behavior trees and other models. The monograph Behavior Trees in Robotics and AI is a strong starting point. For a deployed system, formal reasoning should complement—not replace—hazard analysis, requirements traceability and physical validation.

Behavior trees with planners, machine learning and generative AI

Modern robots increasingly combine symbolic logic with learned components. Behavior trees can provide the stable execution envelope around those components.

A task planner may generate a sequence of skills, while the BT monitors execution and selects recovery. A learned grasp policy may be wrapped as an action node with validated inputs, confidence thresholds, timeouts and a deterministic fallback. A perception model may update structured world state that conditions inspect.

Large language models can propose goals, select from approved skills or generate candidate tree structures, but unrestricted runtime generation is risky. Language-model output is probabilistic, can violate hidden constraints and may change under equivalent prompts. A safer pattern is:

  1. Expose a small catalogue of validated skills.
  2. Require typed parameters and permission checks.
  3. Validate generated plans against explicit constraints.
  4. Execute them inside bounded BT subtrees.
  5. Keep collision avoidance and safety enforcement independent.
  6. Log the proposal, validation result and executed tree version.

The BT becomes a governance boundary: learned systems contribute flexibility, while deterministic nodes enforce operational rules. This does not automatically make an AI-driven robot safe, but it makes authority and failure handling more inspectable.

When you should not use a behavior tree

Choose a simpler mechanism when it describes the system better. A BT may be unnecessary when:

  • the behavior is a short, fixed sequence with no branching or interruption;
  • a component has only a handful of lifecycle states and explicit transitions are the main concern;
  • hard real-time control must run at motor-loop frequency;
  • a mature statechart or workflow engine already matches the team and certification process;
  • the team lacks tooling to trace tree execution and would deploy opaque XML;
  • most decisions arise from long-horizon optimization better handled by a planner.

Conversely, a BT is a strong candidate when priorities need frequent reevaluation, capabilities should be reused across missions, failures require local recovery and operators need to inspect why the robot chose a branch.

A production checklist

Before deploying a behavior tree, confirm the following:

  • The root expresses a clear mission or policy boundary.
  • Every subtree has documented inputs, outputs and responsibility.
  • Leaf names describe domain behavior.
  • Conditions are fast and side-effect free.
  • Long-running actions never block the tick loop.
  • Every Running action has tested halt and cancellation semantics.
  • Shared resources have explicit owners.
  • Blackboard keys are typed, scoped and documented.
  • Reactive guards are intentional and their response latency is known.
  • Retries and loops have attempt or time limits.
  • Expected failures are distinguishable from software faults.
  • Local recovery occurs near the failing capability.
  • Terminal failure reaches an operator, supervisor or safe state.
  • Execution traces include tree version, status changes and relevant inputs.
  • Unit, subtree, simulation and hardware tests cover timing races.
  • Independent safety systems enforce critical limits.

Frequently asked questions about behavior trees

What is a behavior tree in robotics?

A behavior tree is a hierarchical model for coordinating robot decisions and actions. An executor repeatedly ticks the root, and visited nodes return Success, Failure or Running. Control-flow nodes combine smaller actions and conditions into missions, priorities and recovery strategies.

How is a behavior tree different from a finite-state machine?

An FSM emphasizes explicit states and transitions. A behavior tree emphasizes hierarchical execution, priorities and the outcomes of reusable behaviors. Both can represent complex logic, but BTs often reduce the need for transitions that cut across many states. FSMs may remain clearer for small lifecycle-oriented systems.

Are behavior trees artificial intelligence?

They are a decision and orchestration technique used in AI and robotics, but a BT does not learn by itself. It can coordinate conventional algorithms, planners and learned models. The intelligence of the complete robot depends on the behaviors, world model and policies connected to the tree.

What are the main behavior-tree node types?

The common types are Sequence, Fallback or Selector, Parallel, Decorator, Action and Condition. Frameworks often provide reactive and memory variants plus domain-specific control nodes.

How often should a behavior tree tick?

There is no universal frequency. Choose it from the required reaction time, the cost of evaluating the active path and the timing of connected components. High-level BTs commonly run far slower than motor controllers. Safety reactions should not rely solely on a best-effort high-level tick loop.

What is a blackboard in a behavior tree?

A blackboard is a shared data store used to exchange values between nodes. Good implementations expose values through typed ports and scoped interfaces. An unrestricted global blackboard creates hidden dependencies and should be avoided.

Can behavior trees run actions in parallel?

Yes, but concurrency semantics depend on the framework. A Parallel node may tick several asynchronous actions without executing their code simultaneously. Designers must define success thresholds, failure thresholds, resource ownership and cancellation behavior.

Does ROS 2 support behavior trees?

ROS 2 applications can use behavior-tree libraries, and Nav2 uses BTs to orchestrate navigation capabilities. BehaviorTree.CPP provides ROS 2 integration patterns, while ROS actions are well suited to long-running, cancellable BT leaves.

What are the disadvantages of behavior trees?

Large trees can become difficult to navigate; reactive evaluation can waste work; asynchronous cancellation is easy to implement incorrectly; decorators can obscure meaning; and shared blackboards can create hidden coupling. Strong modularity, instrumentation and testing are required.

Can an LLM generate a behavior tree for a robot?

It can propose a candidate tree, but generated logic should be validated against typed interfaces, operational constraints and safety rules before execution. Use a restricted skill catalogue, bounded authority and deterministic safety enforcement rather than allowing free-form model output to command hardware directly.

Conclusion

Behavior trees provide a compact vocabulary for one of robotics’ hardest problems: deciding what a robot should do next while the world keeps changing. Their value comes from hierarchical composition, explicit outcomes, reusable subtrees and the ability to reconsider priorities. Their risks come from the same flexibility: unclear node contracts, unmanaged shared state, broken cancellation and limitless recovery can turn a clean diagram into fragile software.

The strongest implementations treat the tree as an observable orchestration layer. Perception builds trustworthy state, planners and controllers provide bounded capabilities, leaf nodes expose precise contracts, and independent safety systems enforce hard limits. With those boundaries in place, behavior trees can scale from a navigation demo to maintainable production autonomy.

Primary sources and further reading

Bewerte den Beitrag hier!
[Total: 1 Average: 5]
Nico Nuss [Image content created with AI]
Website

Author Nico Nuss has been working on mobile computing and automation software since 2001. Drawing on his experience and strong interest in future technologies, he focuses on robotics and AI.

Weitere interessante Beiträge
